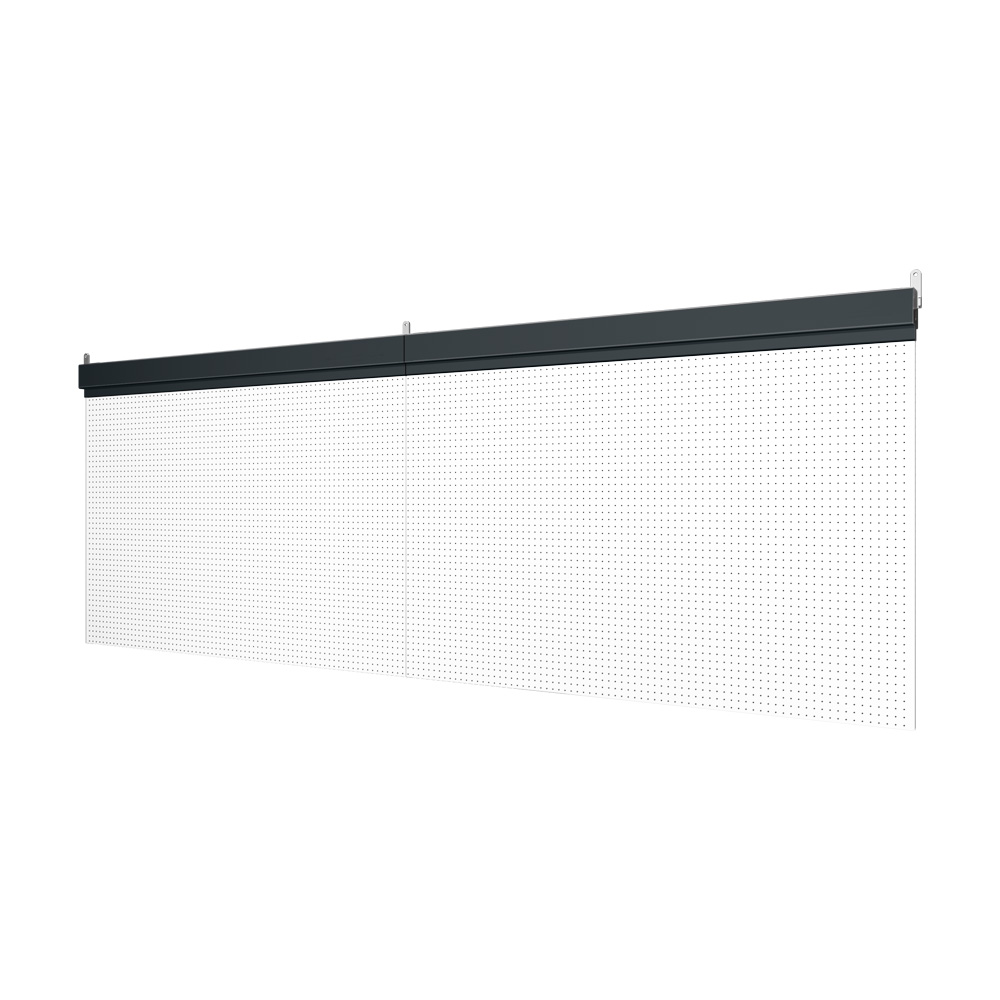

NT Series
NexEsign is a smart high-tech product that uses novofactor's patented integrated-IC technology and nano film circuits to create an ultra-transparent glass LED display. It supports mobile phone apps, making it ideal for wayfinding banners, retail glass windows,
and other innovative applications.
NexEsign is a versatile display used in various settings, such as lobbies, traffic information, municipal engineering, banks, hospitals, subways, restaurants,
hotels, shopping malls, tourism, entertainment venues, and real estates.
- full sense of technology and fashion
- Light & Thin
- Remote control
- Waterproof and explosion-proof
- Environmental friendly
- random splicing
Core technology-self-developed LED chip
LED chip integrates into LED bead
which simplifies the circuit design and guarantees extremely high transparency True 16 bit gray scale, delicate and vivid color.
Lighter
Weighing only 9kg per pieceNexEsign is lightweight and can be installed by hanging or close to a glass window.
Transparent
With over 92% transparencyNexEsign offers a transparent and simple design, allowing for coexisting interior display and lighting
Thinner
6mm thicknessultra-thin glass, environmental friendly and energy saving

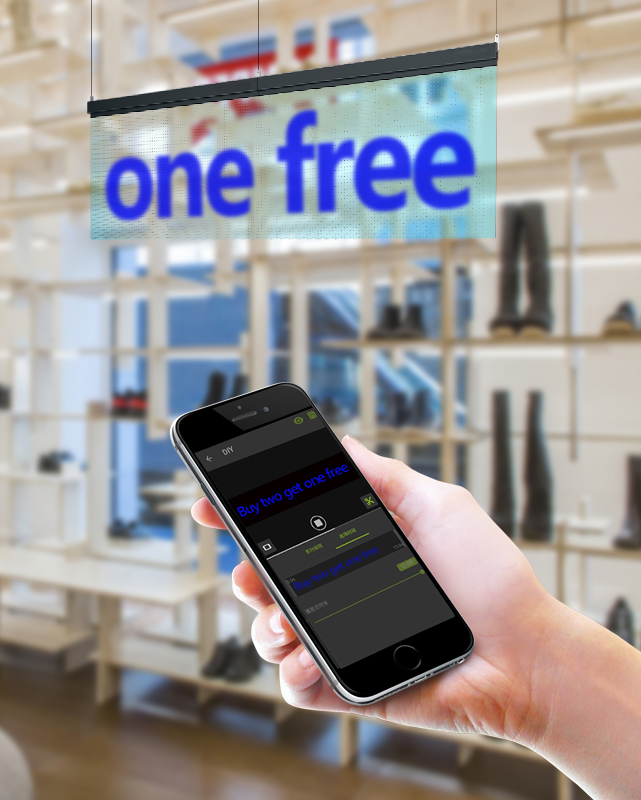

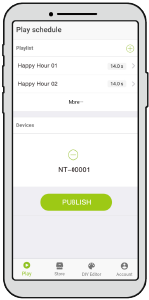

Whenever and wherever to manage content
· NexCloud independent cloud platform or HDMI input
· NexCloud is an APP smart cloud information publishing system
· Remote management available, mobile phone “one-click” publish, easily manage the content at any time
· Support content customization service, making content display more personalized
Convenient installation
Fixing and hoisting available, easy and stable operation Left and right splicing expansion upon your needs

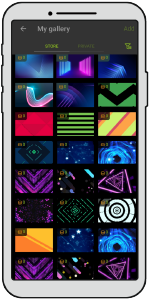

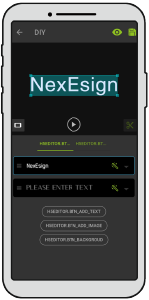

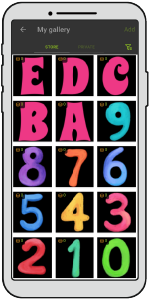

DIY- A large amount of material for personalized DIY
A large number of text, background and motion template materials. Choose a template for personalized DIY then publish it to your screen with one click. A perfect solution for the content design problem, everyone is a design expert!
Permission management makes information much safer
Flexible hierarchical permissions management and strict content auditing are supported
Which ensures agile management and secure information distribution.

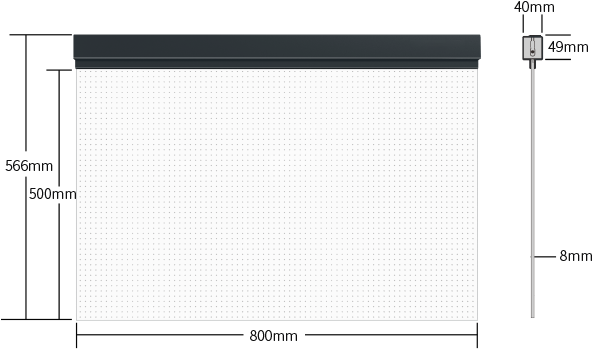

Specification
| Model | NT10-A | NT8 |
|---|---|---|
| LED | NEX2121 | NEX2121 |
| Pixel Pitch（mm） | 10.52x10.42 | 8.3x7.8 |
| Panel size(w×h)mm | 800x500 | 800x500 |
| Panel resolution | 76x48=3648 | 96x64=6144 |
| Maximum power(w/panel) | 310W | 320W |
| Weight(kg/panel) | 9 | 9 |
| Brightness（cd/㎡） | 4000-4500 | 4000-4500 |
| Transparency | 92% | 90% |
| Thickness | 8mm | 8mm |
